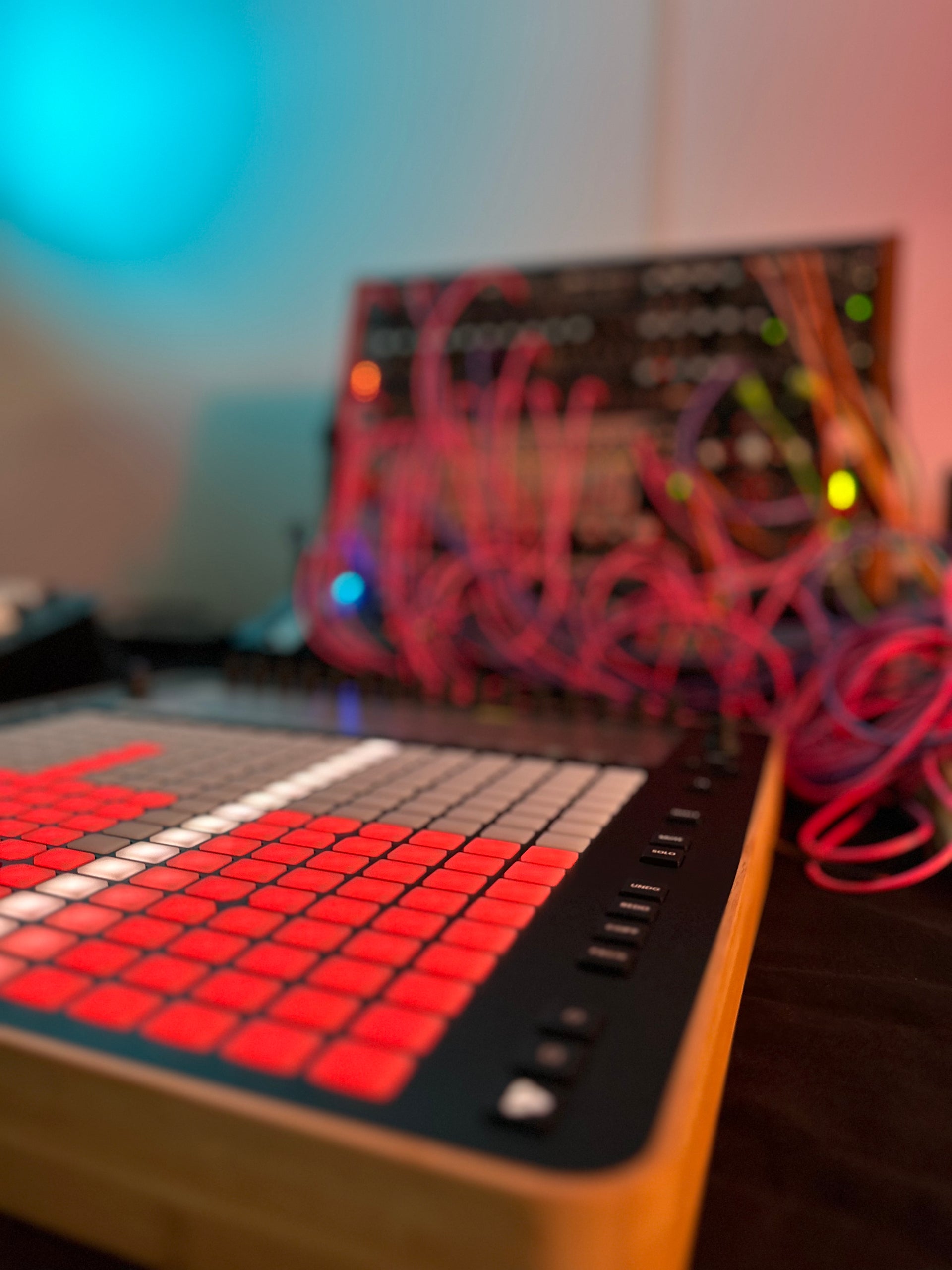

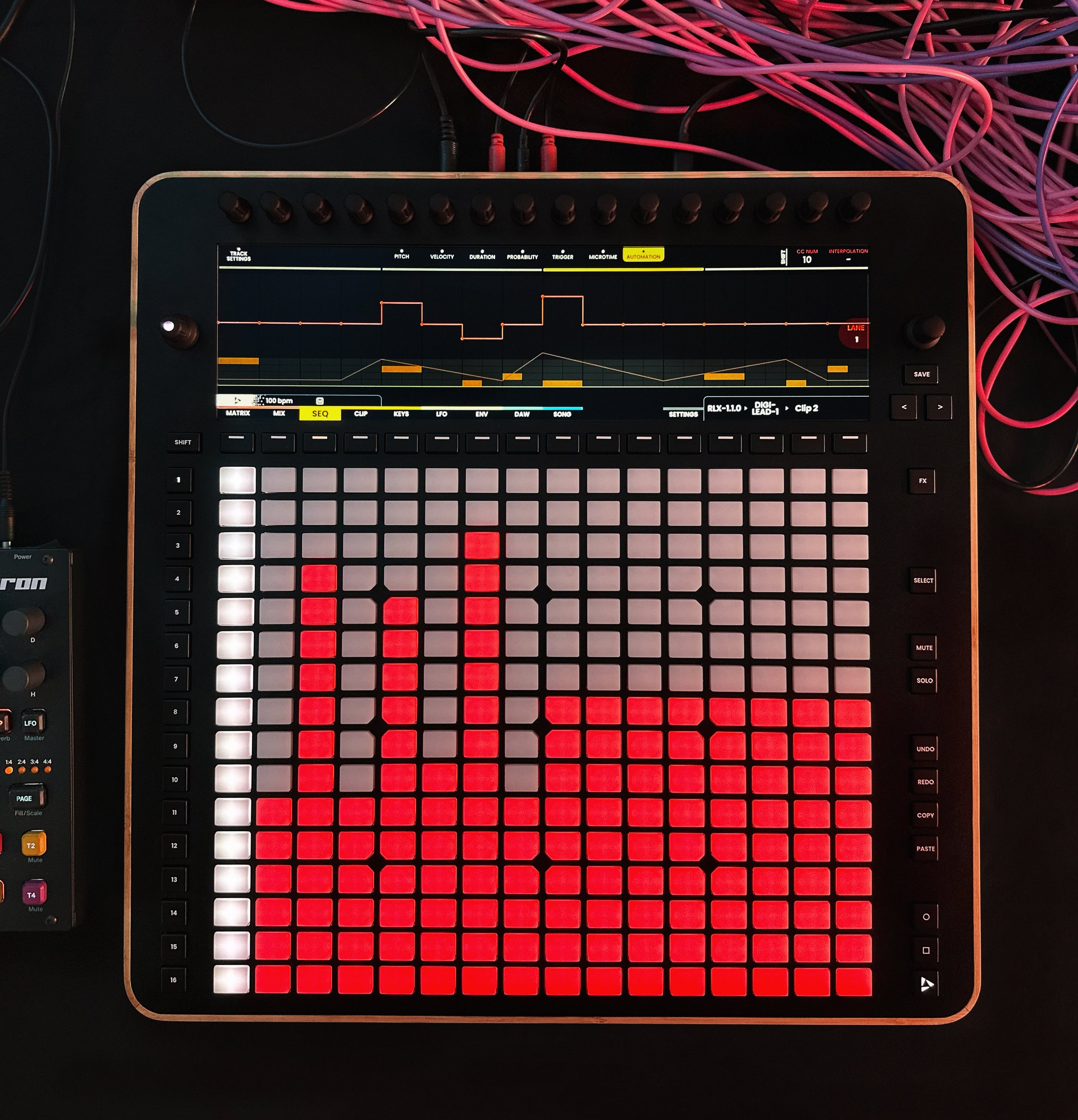

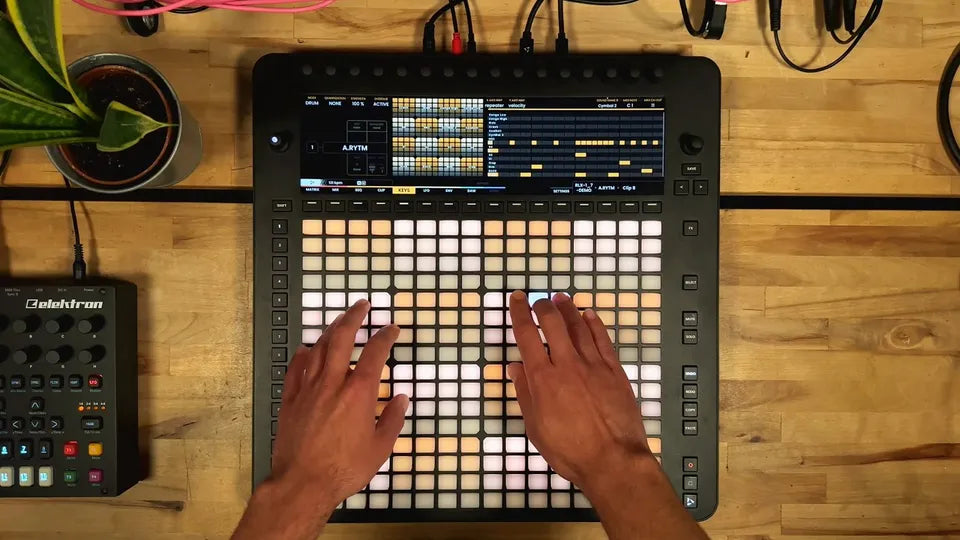

A Hybrid Control Surface

Reliq can connect any analog audio input to any output with just the press of a button. With its unique Sequencer it can control up to 64 instruments at the same time with 8 voices of Polyphony per track!

Reliq is a standalone device but it can become a great friend to your computer too. With its DAW Control Surface it can control your DAW in tight synch with any hardware instruments without the need to touch a mouse, a keyboard or look at a computer screen

Key Features

MATRIX

  • A 16 x 16 fully analog, clickless matrix-mixer

  • Matrix-Mixer Sequencer track

  • A eurorack Breakout Module (included)

I/O

  • 16 analog inputs

  • 16 analog outputs

  • 32 CV outputs

  • 16 Gates

  • 1 Clock output

  • Reset output

  • 3 MIDI outputs

  • Midi Input

  • USB-MIDI

  • USB-HOST

SEQUENCER

  • 16 Polyphonic sequencer Tracks

  • Sequencer Modes - Euclidean, Step and Stochastic

  • Several Isomorphic Keyboard modes

  • Built-in modulation engine for LFOs and Envelopes

DAW

  • Native DAW support for several DAWs

  • Tight synchronization engine for all MIDI, CV and DAW connections

  • User Mode for custom mappings

  • Extensive Song Mode

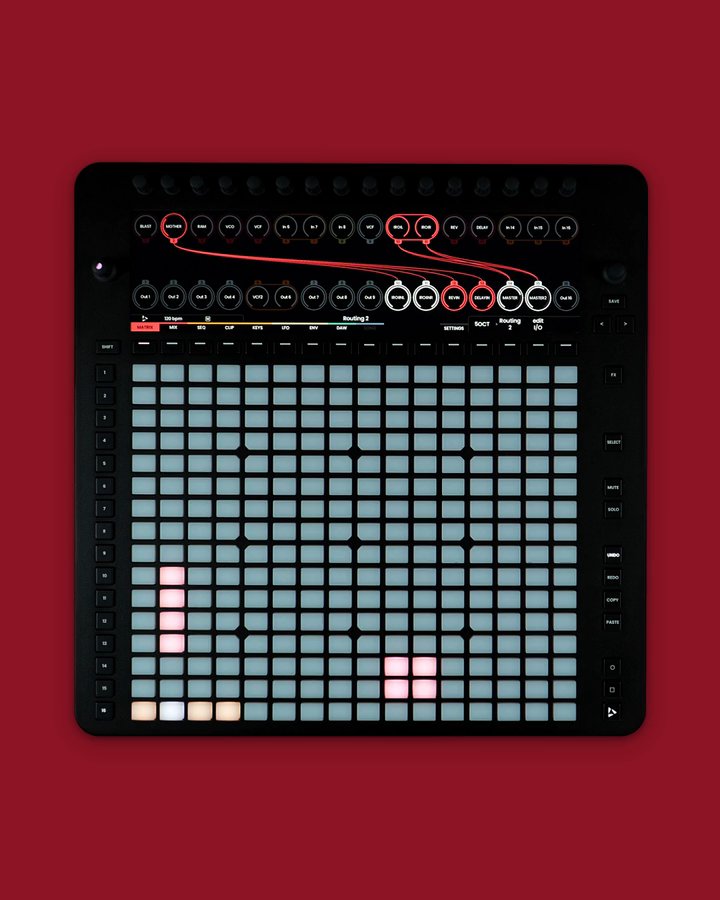

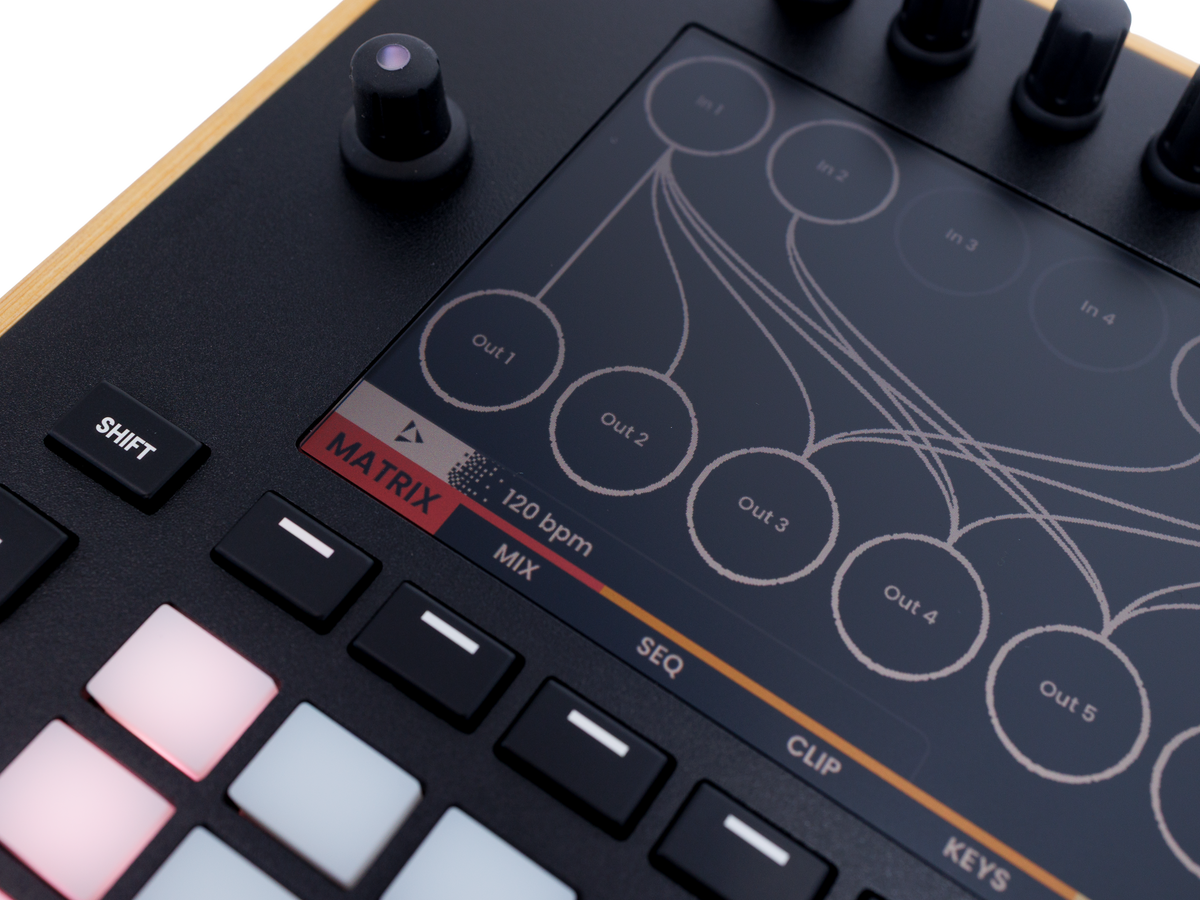

A First-Of-A-Kind Analog Matrix-Mixer

MATRIX

  • 16 Analog Inputs

  • 16 Analog Outputs

  • Line Level, Eurorack Level and CV compatible

  • Clickless switching between connections

  • 128 routings (patch presets) per project

  • Matrix-Mixer Sequencer Engine

  • High-Res amplitude control for all inputs & ouputs

  • Inputs/Outputs signal type Groupings (CV/Audio/Control etc)

  • Inputs/Outputs Grouping per size (Stereo, Mono)

  • Generative patching functions

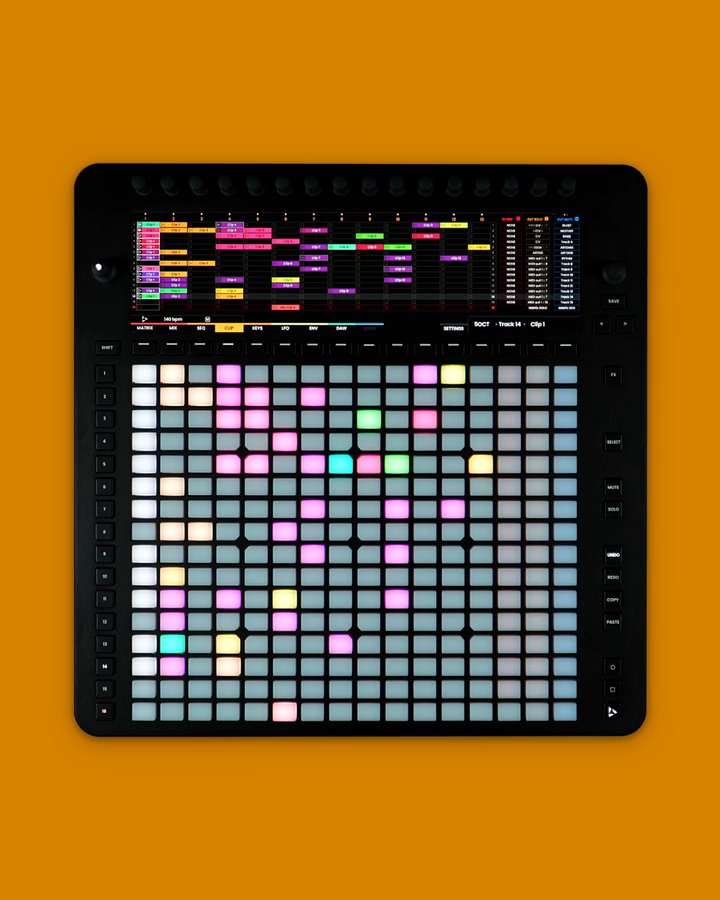

A State-Of-The-Art Sequencer
Designed For Unparalleled Precision

SEQUENCER

  • 16 Sequencer Tracks

  • MIDI/CV/USB outputs per track

  • 512 Steps Max Clip (pattern) length

  • 128 Clips (patterns) per track

  • Clip follow-up functions

  • 8 Voices of Polyphony per track

  • 8 CC controls per track

  • Extensive Piano Roll mode

  • High-resolution Recording at 768 PPQN

  • MPE support

  • Step mode, euclidean mode, stohastic mode

  • Isomorphic Keyboard modes with scale and percussive support

  • Real-time offset parameters per track

  • Parameter Locking

  • Probability per step

  • Microtiming per step

  • Trigger condition per step

  • CC Per Step

  • Mute/Solo functions

  • Copy/Paste functions

  • Undo/Redo functions

MIDI FX ENGINE

  • Randomise Duration/Position

  • Pitch Transposition

  • Reverse Pitch

  • Pitch Quantisation

  • Chord Generator/Trigger

  • Randomise Pitch

  • MIDI Delay

  • MIDI Ratcheting

  • Arpeggiator

  • Fixed Velocity

  • Crescendo/Decrescendo

  • Groove Accent

  • Randomise Velocity

  • Accelerando

  • Duration Re-mapping

  • Reverse Pattern

  • Time Shuffle

  • Length Quantisation

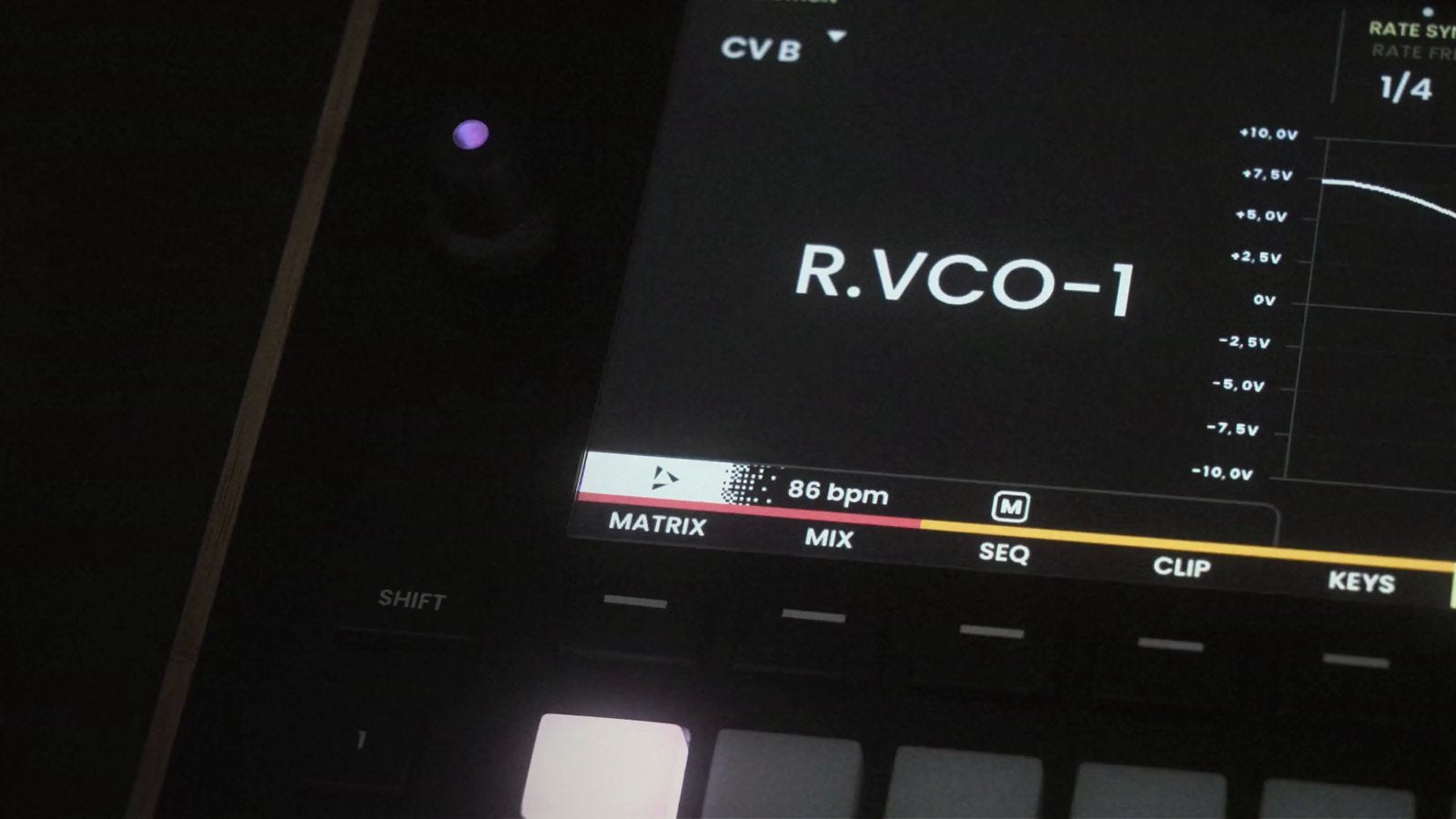

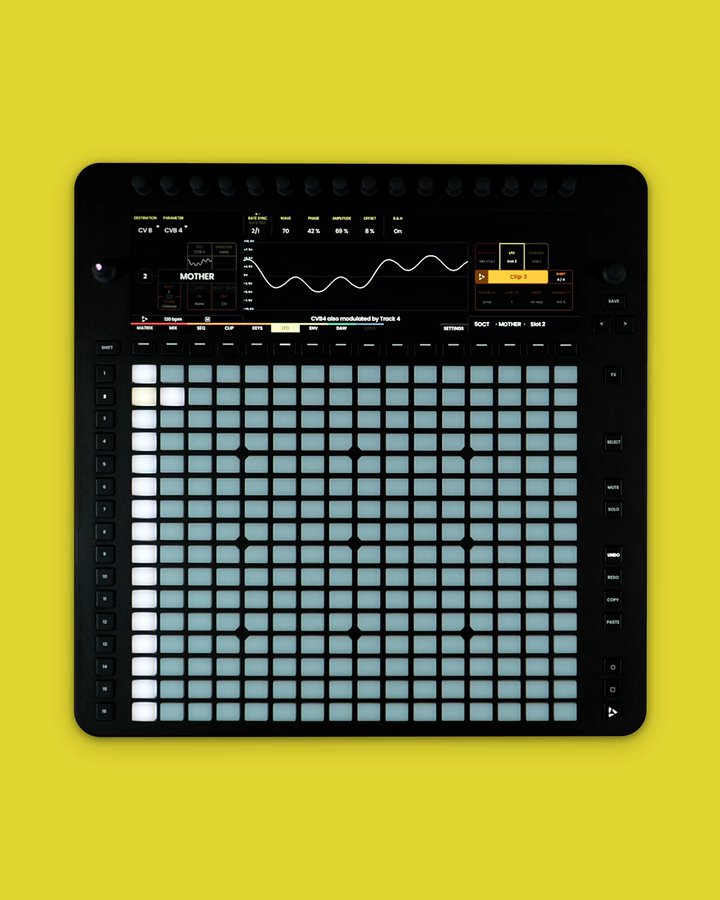

A Modulation factory

MODULATION

  • 32 modulations, (16 LFO, 16 envelopes)

  • LFO and Envelope per track

  • CV modulation from 0.0001Hz to 60Hz

  • Internal Parameter Modulation

  • CC Modulation

  • MPE Modulation

  • Custom LFO shapes

  • 128 Modulation slots (presets) per track

  • Modulation slots follow-up functions

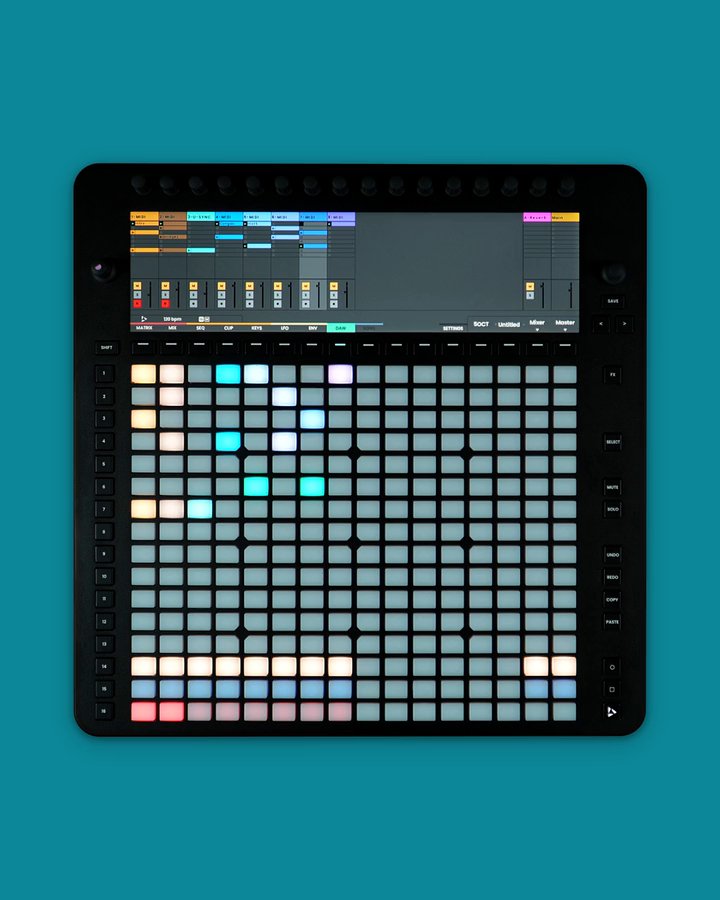

A Fully-Integrated DAW Controller

DAW

  • Ableton Live support

  • Bitwig Support

  • Logic Pro Support

  • Reliq dedicated Plug-in

  • High-precision synchronization

  • Bi-directional control between DAW and Reliq

Extensively Customisable User Page

  • Custom MIDI/CC/CV mapping per button

  • Custom MIDI/CC/CV mapping per encoder

  • Custom Gate mappings

  • Open Sound Control support for wireless control

  • Save and share your mappings with anyone

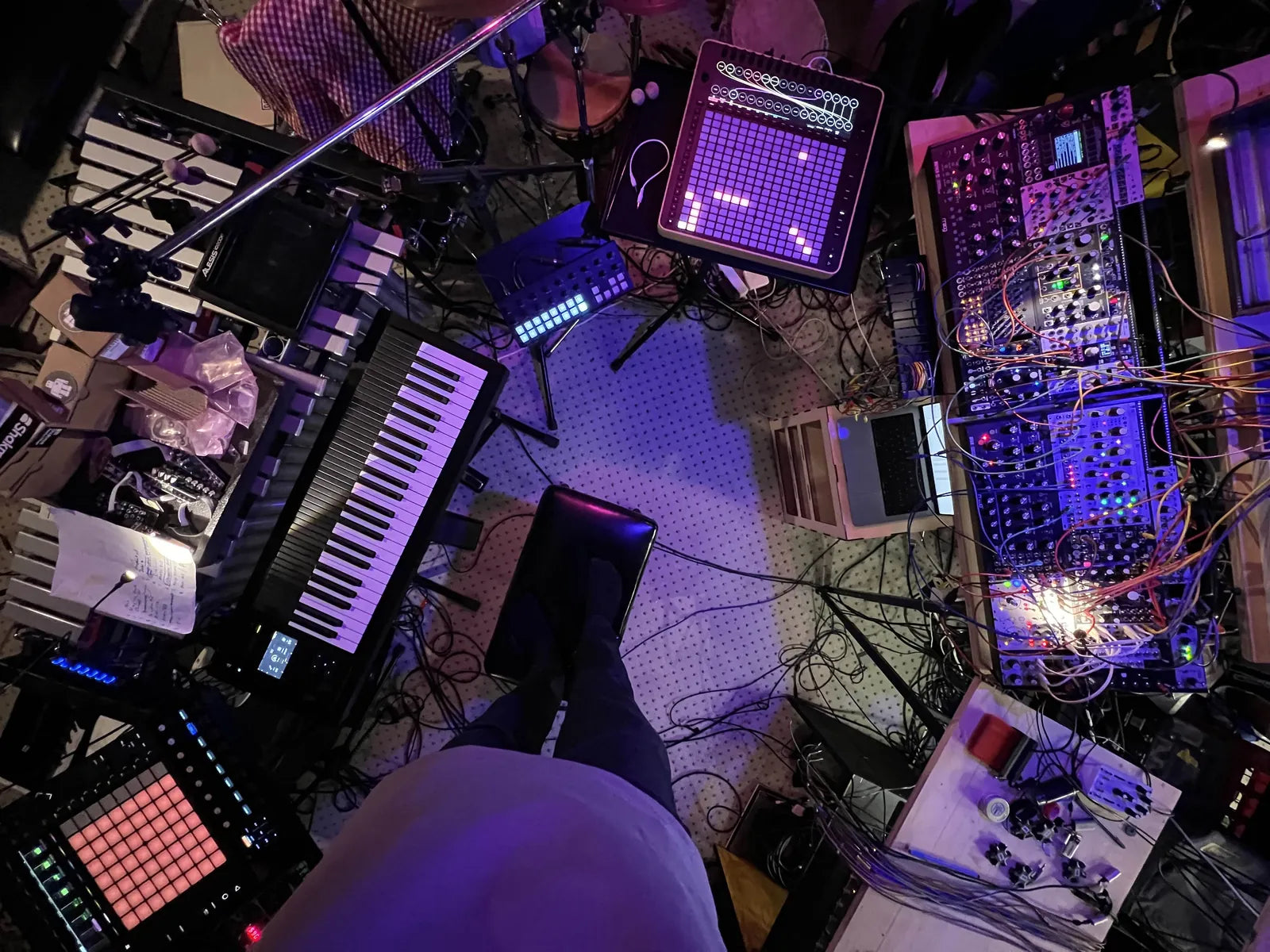

From home to studio, to live to an album

  • Create custom macros for personalised workflow

  • Trigger DAW clips, Sequencer Clips and Matrix routings from a single button

  • Custom Encoder offset parameter macros

  • Extensive song mode with more than 2 hours of arrangements per project

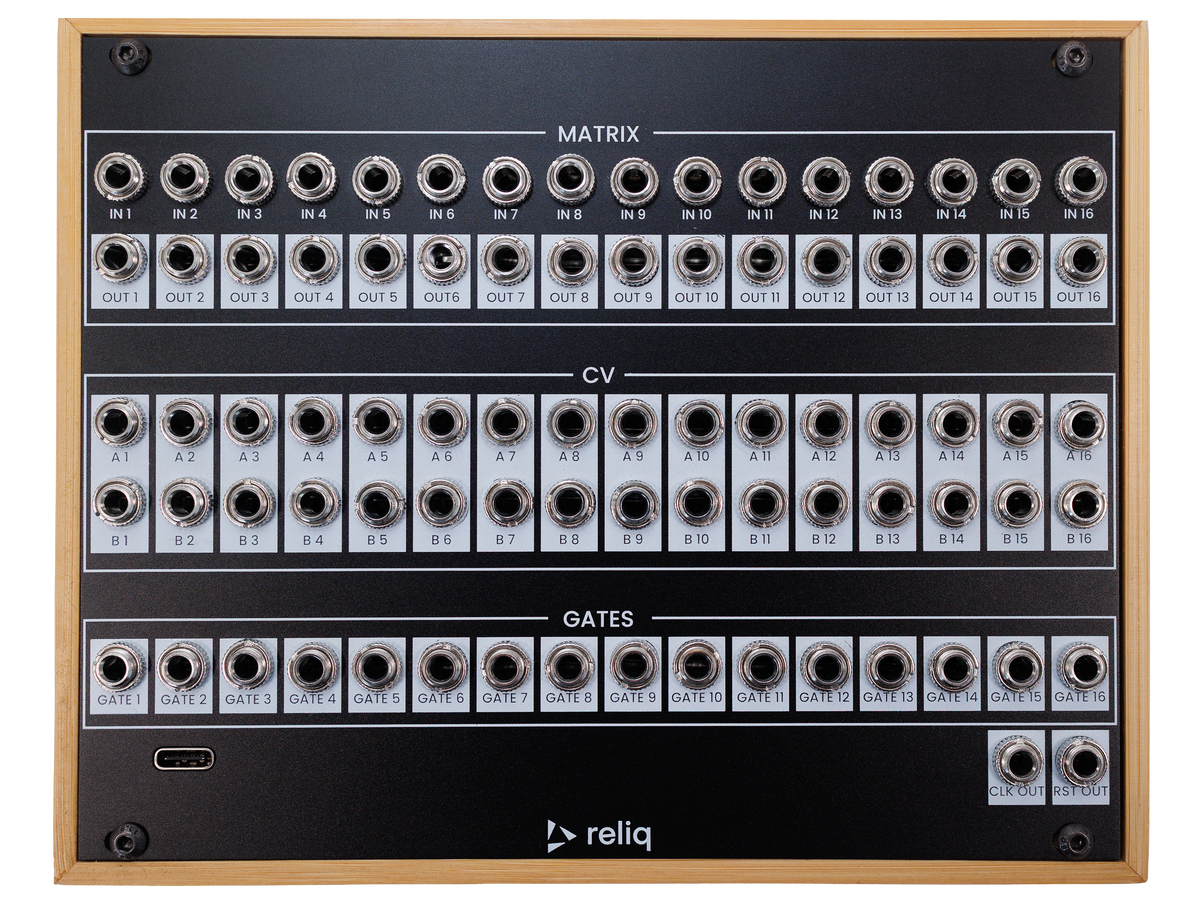

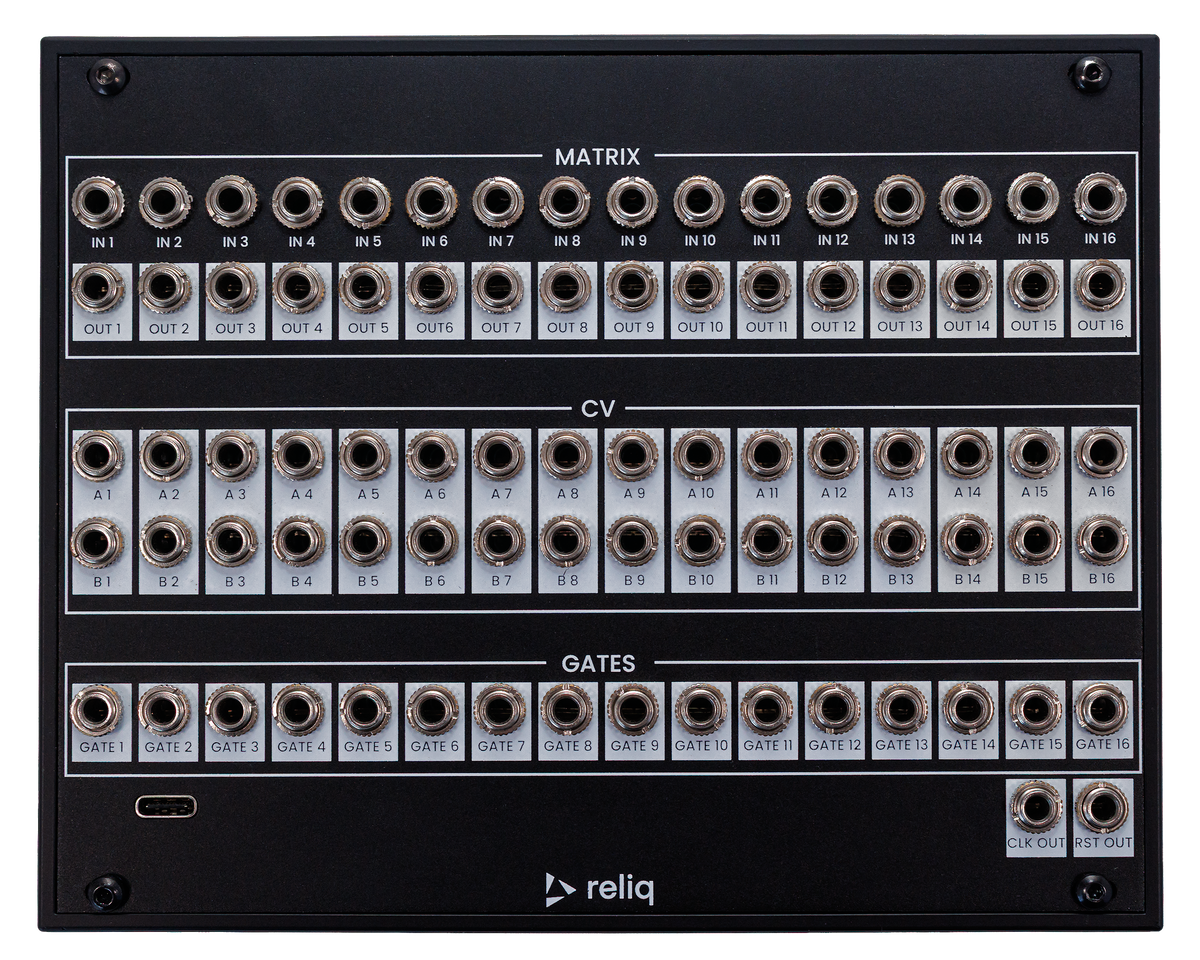

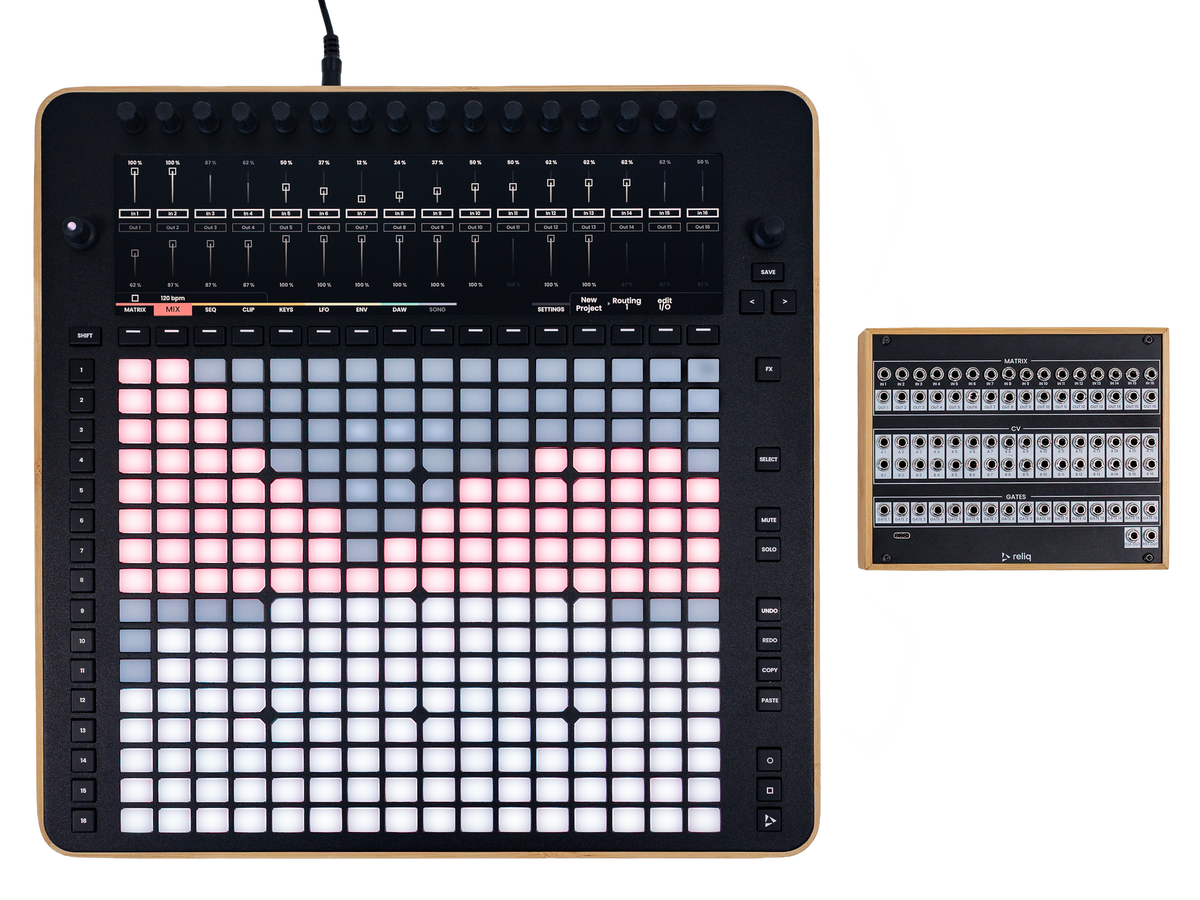

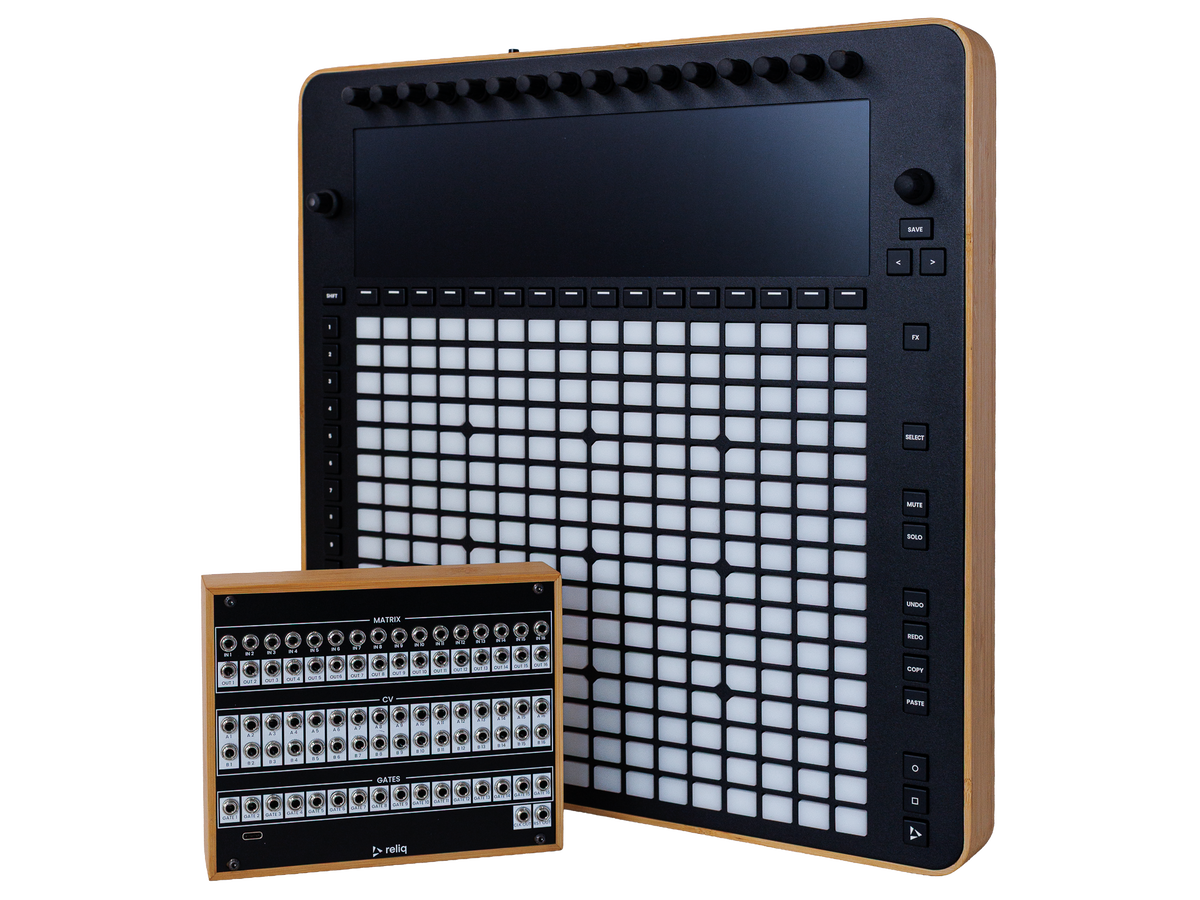

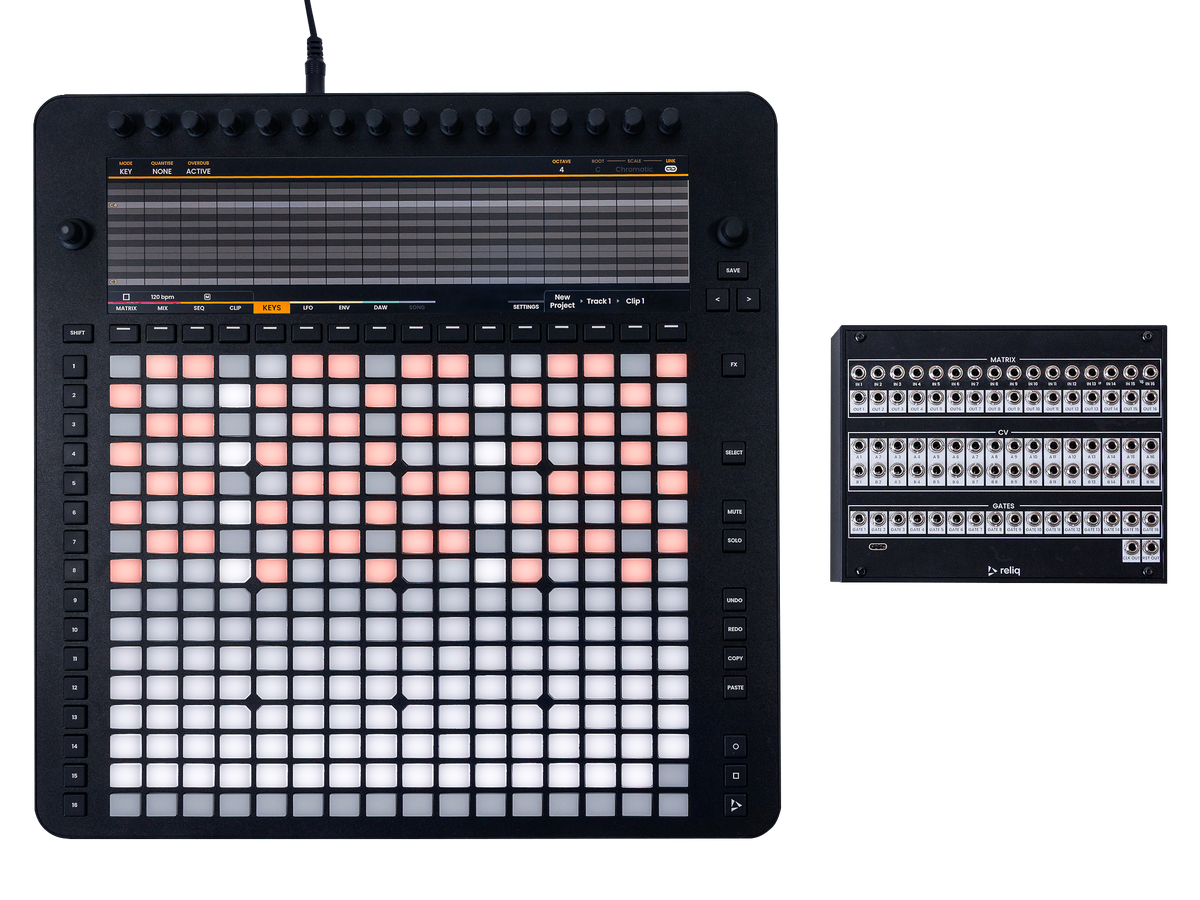

A Modular Breakout Box

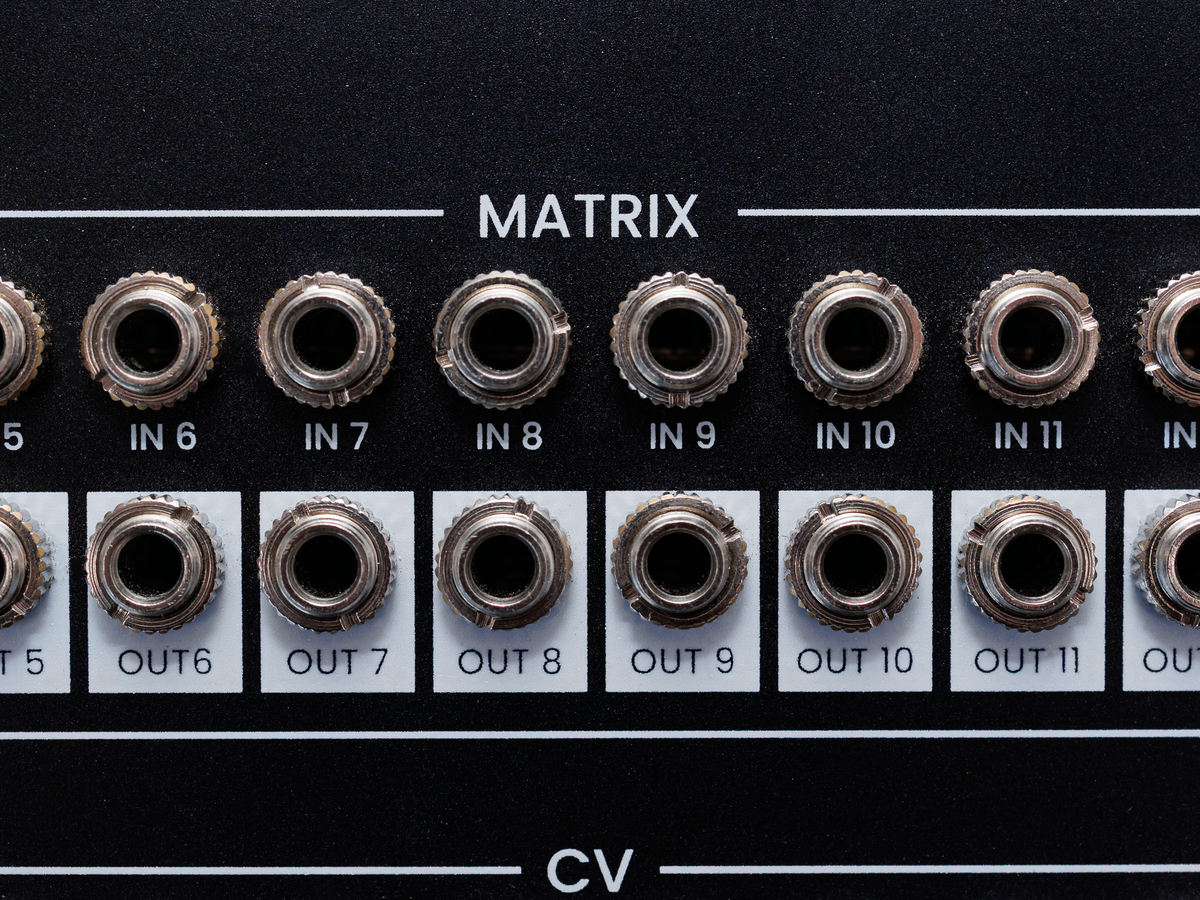

Reliq’s 32 CV outs, 16 Gates and 16x16 Matrix I/O comes in its own case. Powered directly from Reliq via USB-C.

Reliq’s breakout can stay at any corner of your studio or in your eurorack case for staying always patched.

  • Connect to Reliq via a standard usb-c cable

  • Power over USB-C

  • 16 x gates ( 5~10V)

  • 32 x CV outs (+/-5V ~ +/-10V)

  • 1 x Reset out

  • 1 x Clock out

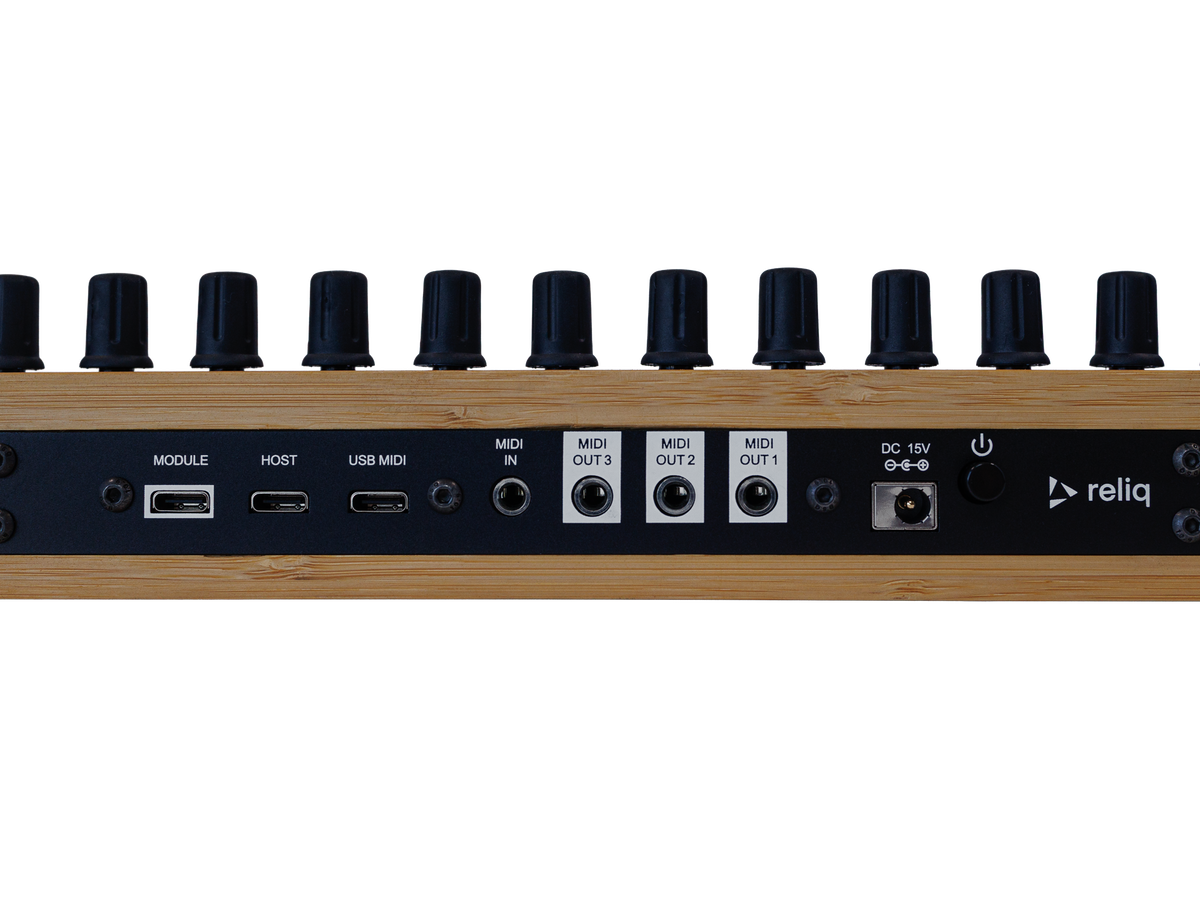

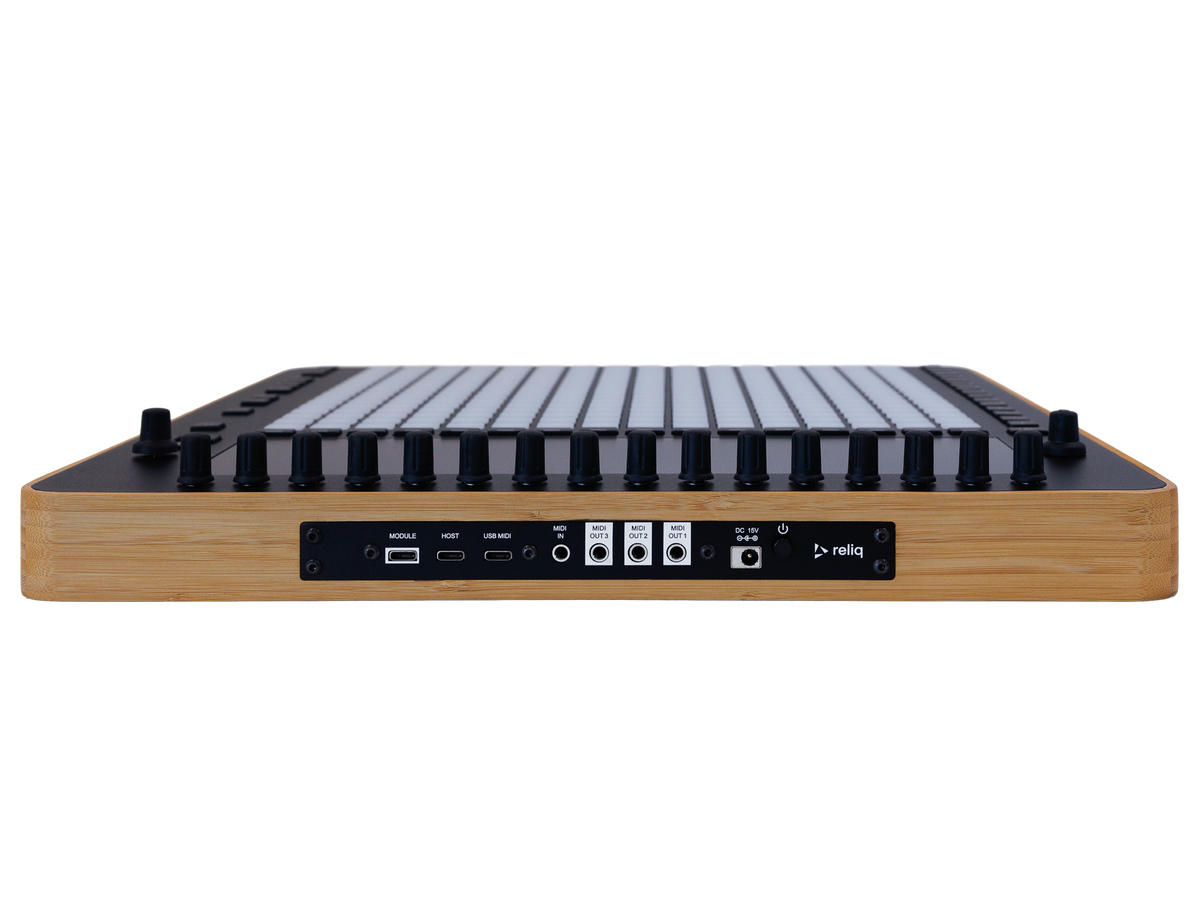

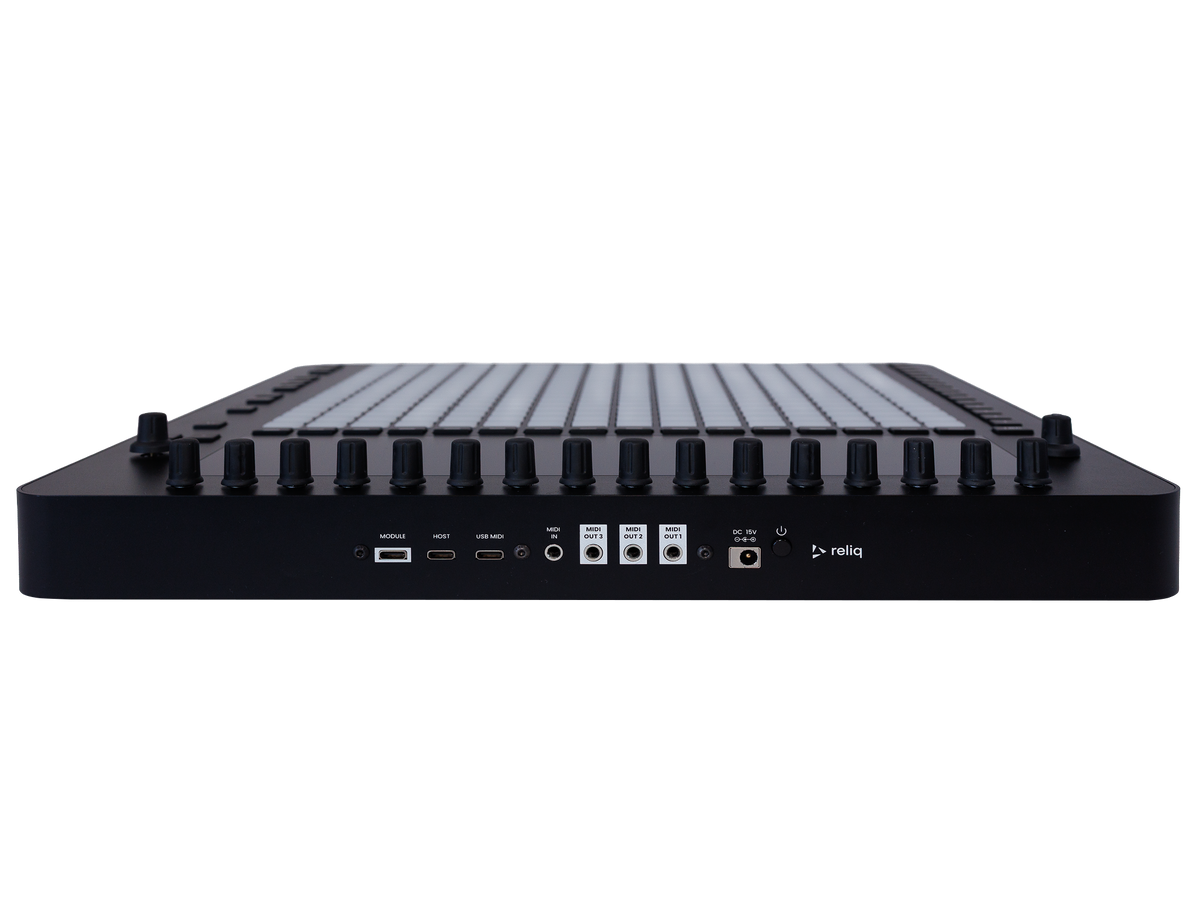

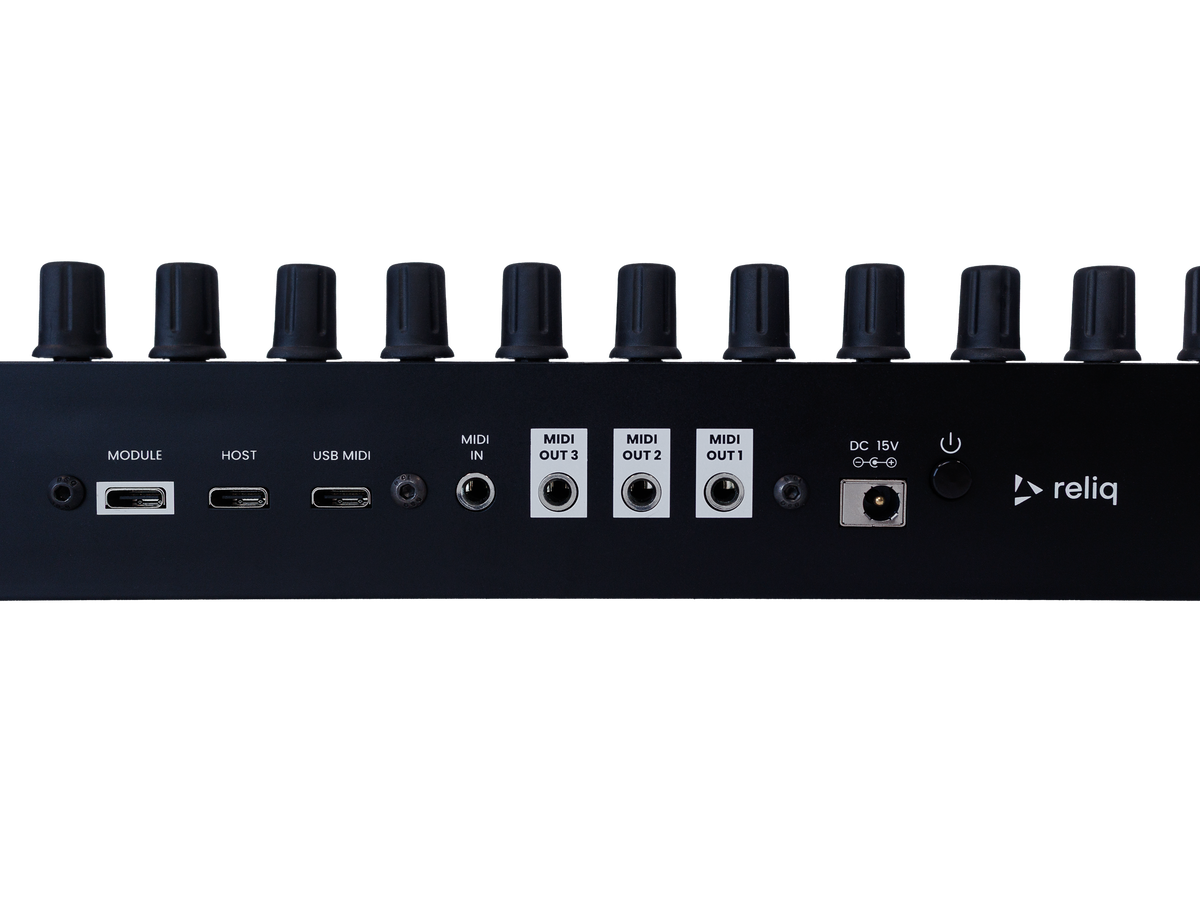

Reliq back panel I/O
